SDM4T

Highlights of the SDM4T

MONO BLOCK CAST BODY

novel closed mono-block cast body for stability and precision

WATER COOLED

SELF-SUFFICIENT OPERATION

Air pressure range 0.55-0.6Mpa（ No oil and No water )

SCANNER COMPATIBLE

with all open scanners (STL)

HIGH-PERFORMANCE SPINDLE

high end spindle for milling and grinding up to 60.000 rpm

ADAPTER VARIETY

Adapter for all common blocks

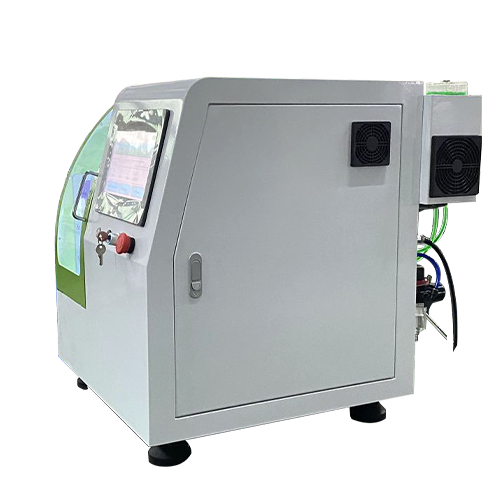

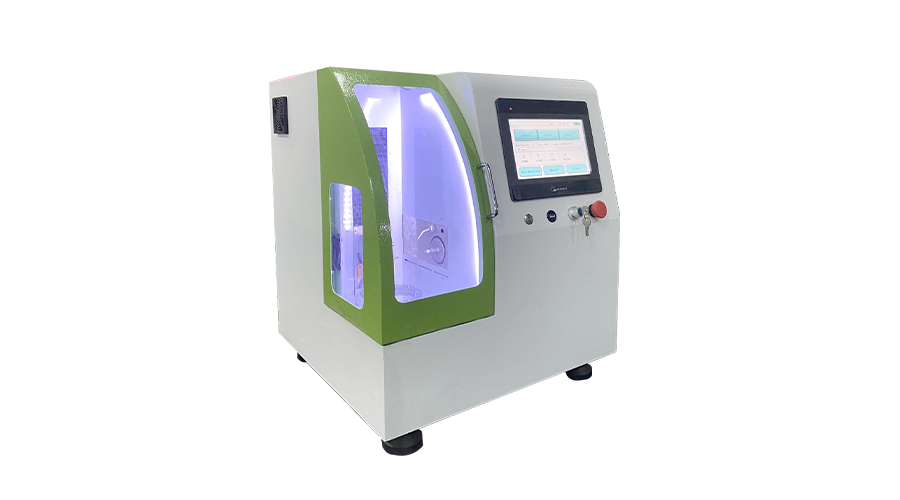

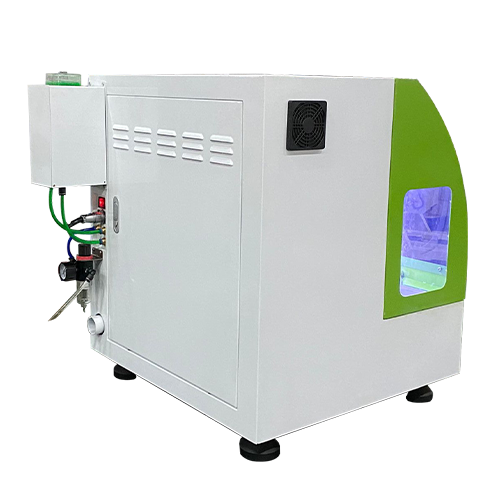

SDM4T

Overview:

SDM4T is a 4-Axis dry-milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibility. It is an ideal choice for high-precision restorations including bridges, crown/coping, Bridge, Inlay/onlay like zirconia perforation. Equipped with premium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, SDM4T offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.

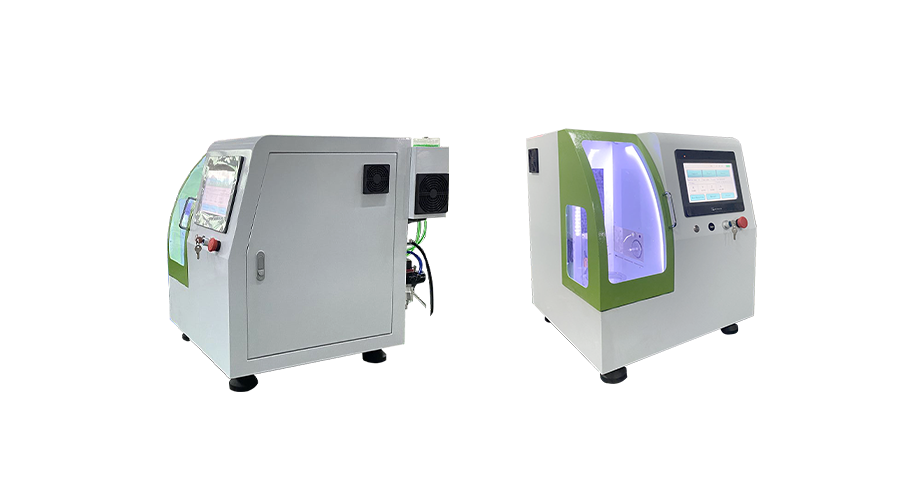

Highlights - SDM4T

Key features：

1. Open controller system

This system supports international ISO standard G code, compatible with popular CAM software, such as HyperDent，SUM3D Dental, GO2dental, WorkNC dental, Delcam Dental etc.

2. Intelligent processing

Excellent and simple man-machine interface, touch screen control, simple operation, unique CAD/CAM processing strategy, no need for professional CNC programmers, one-button operation, stable operation.

3. High Accuracy

The body structure adopts the industrial standard cast iron and cast aluminum structure, high rigidity, no deformation, stable precision, long service life.The mechanical transmission part adopts Taiwan/Germany C3 grade high precision ball screw and P grade linear guide rail.

4. High Efficiency

It adopts high power frequency conversion and high speed tool changing spindle with large torque, high precision, and it can process various materials with high efficiency.

5. OEM customize

This machine is completely developed and designed by us, so we can provide customers with OEM service

SDM4T

Scanner

CS360Pro 3D Scanner

PANADA

Carestream CS3600

Medit i500

Shining 3D

Acralscan

other scanners

CAD SOFTWARE

exocad

Chairsidecad

CAM SOFTWARE

HyperDENT

GO2Dental

MillBox

workNC

Materials

Wax

PMMA / PEEK

Zirconia

TOOLS

Milling and

grinding tools

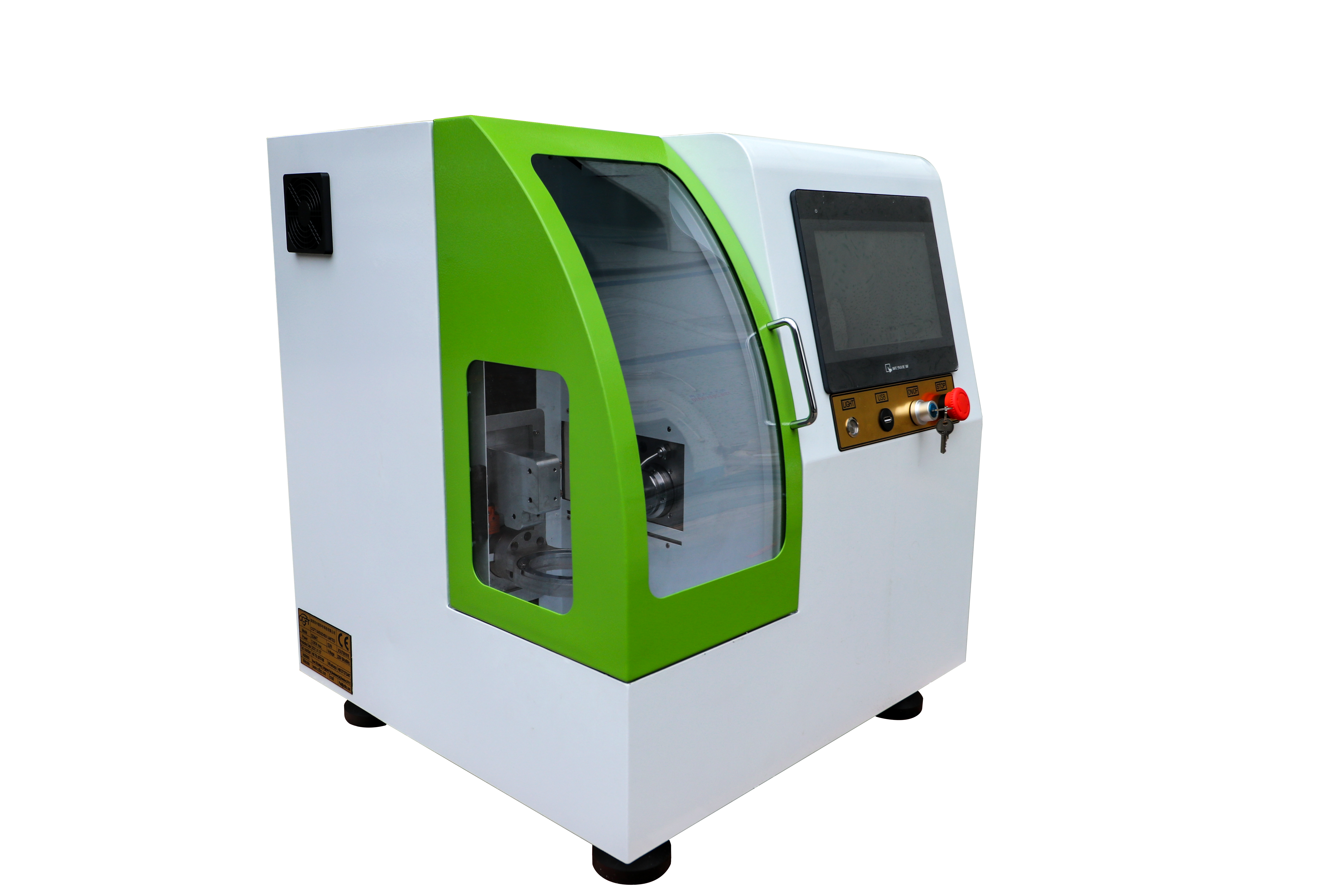

CAMDENT SDM4T

Applications of SDM4T

PMMA

WAX

zr-pre sintered

Zr-full dense sintered

PEEK

COMPOSITE

glass ceramics

SINT

Pre-milled CoCr-Abutment

Pre-milled Ti-Abutment

Standard

Dentures

E-Max

Block

Crown, bridge

Inlay, Onlay, Veneer

Bridge larger 3 units

Splint

Full Denture

Model

Drilling template

Model casting

Bridge

Telescopic technology

Abutment

Hybrid Abutment

Technical Perameters

Name

4 Axis dental CAD/CAM milling machine

Model

SDM4T

CNC controller

4 axis dental system with touch screen

Milling mode

Dry

Millable material

Zirconia,Wax,PMMA

Product type

Crown/coping, Bridge, Inlay/onlay

Spindle power

1500w

Speed of spindel

60000rpm

Spindle cooling

Water cooled

Rotation range A axis

±360°

Number of burs(Tools) housed

3 pcs

Attachable bur(tool) shank diameter

4mm

Attachable bur(tool) Length

45mm

Tool change and check

Fully automatic

Compatible compressed air

0.6MPa

Loadable workpiece shape External Diameter

98mm

Loadable workpiece shape Max Height

25mm

Loadable workpiece shape Min Height

10mm

External dimensions Length

590mm

External dimensions Weight(Depth)

620mm

External dimensions Height

700mm

Packing dimension

850X850X960mm

Weight

160kg

G.weight

190kg

Input Voltage

Single-phase 220V 50Hz/60Hz

Control command set

NC code

Positioning accuracy

±0.02mm

Average milling time(dental crown) Zirconia

6-10 min

Average milling time(dental crown) Wax

3-6 min

Average milling time(dental crown) PMMA

12 min
