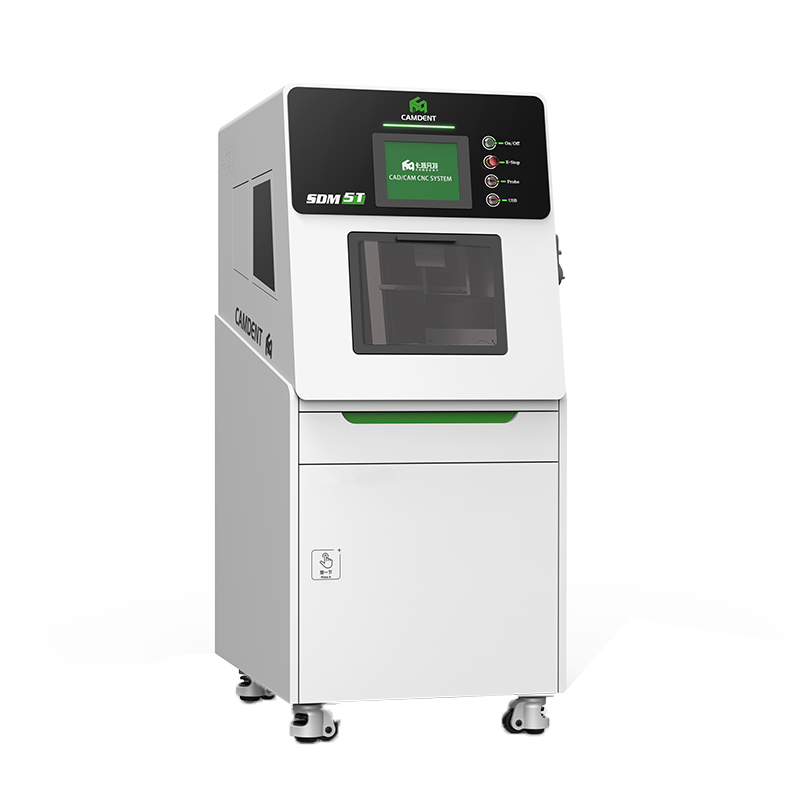

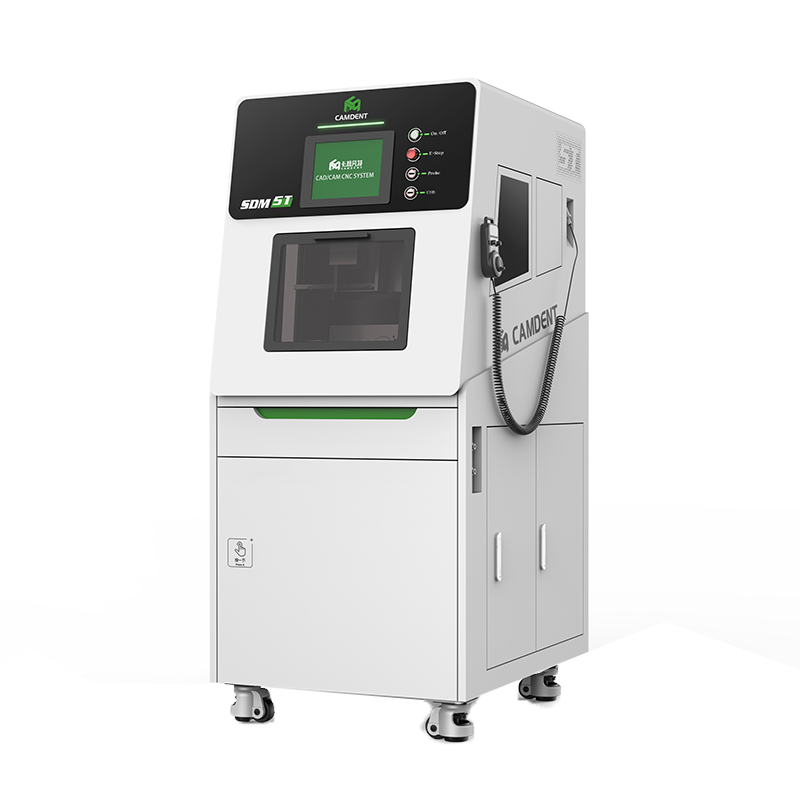

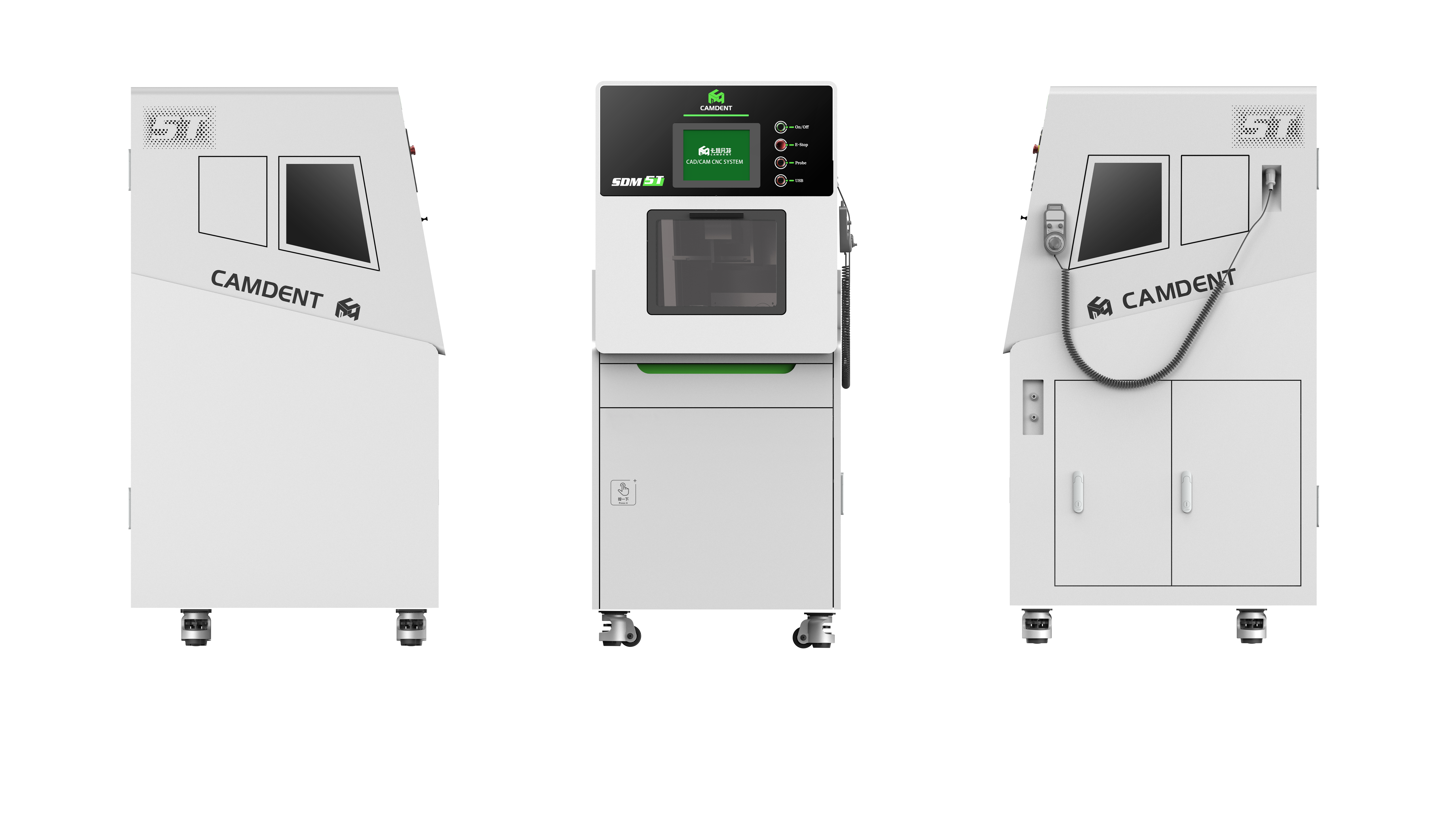

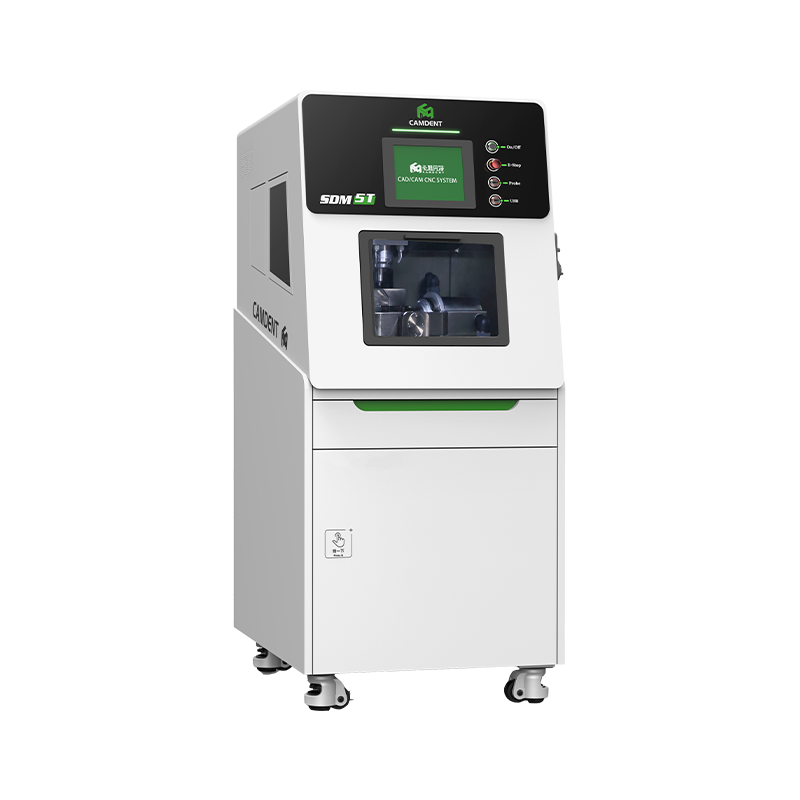

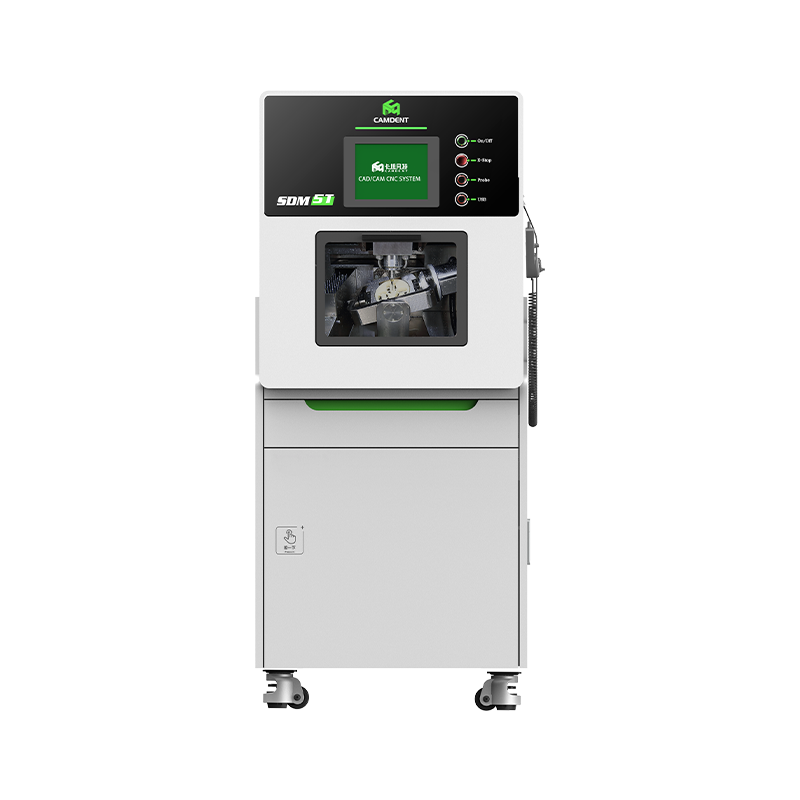

Camdent SDM5T new appearance
All-in-one 5 Axis wet/dry dental miling machine
Wet and dry milling possible
up to 5-axis machining
up to 14 milling tools with 4 mm shaft diameter
Simple operation via touch screen
block- & blank machining possible
Premilled Abutment
Highlights of the Camdent SDM5T new appearance
MONO BLOCK CAST BODY
novel closed mono-block cast body for stability and precision
WATER COOLED
SELF-SUFFICIENT OPERATION
Air pressure range 0.55-0.6Mpa( No oil and No water )
SCANNER COMPATIBLE
with all open scanners (STL)
HIGH-PERFORMANCE SPINDLE
high end spindle for milling and grinding up to 60,000 rpm
ADAPTER VARIETY
Adapter for all common blocks and pre-milled abutments
Camdent SDM5T new appearance


The CAD/CAM digital lab solution


SDM5T is a 5-Axis dry-milling and wet milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibility. It is an ideal choice for high precision restorations including bridges, frames, splint,abutment, base and complicated operations like zirconium perforation. Equipped with premium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, SDM5T offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.


Highlights - Camdent SDM5T new appearance

Key features:

1. Multifunctional Control System

Supports remote diagnosis and control management, Wifi and Lan network connections, network file transmission, intelligent detection of broken tools, breakpoint resume miling function, tool life management, Automatic detection and calibration functions.And compatible with Hyperdent and SUM3D MilBox.

2. Intelligent processing

Excellent and simple man-machine interface, touch screen control, simple operation, unique CAD/CAM processing strategy, no need for professional CNC programmers, one-button operation, stable operation.

3. High Accuracy

The body structure adopts the industrial  standard cast iron and cast aluminum structure, high rigidity, no deformation, stable precision, long service life.The mechanical transmission part adopts Taiwan/Germany C3 grade high precision ball screw and P grade linear guide rail.

4. Double side support at A and B axis.

strong rigidity,The tool does not rebound during high intensity cutting.

5. High Efficiency

It adopts high power frequency conversion and high speed tool changing spindle with large torque, high precision, and it can process various materials with high efficiency.

6. OEM customize

This machine is completely developed and designed by us, so we can provide customers with OEM service

7. Automatic calibration function.


Camdent SDM5T new appearance
Camdent SDM5T new appearance
Scanner

CS360Pro 3D Scanner

PANADA

Carestream CS3600

Medit i500

Shining 3D

Acralscan

other scanners


CAD SOFTWARE

exocad

Chairsidecad

CAM SOFTWARE

HyperDENT

GO2Dental

MillBox

workNC


Materials

Titanium Disc

Titanium Premill
Co-Cr
Zirconia Disc
Glass cermics/Lithium Disilicate
PMMA / PEEK
Wax







TOOLS

Milling and

grinding tools


CAMDENT SDM5T

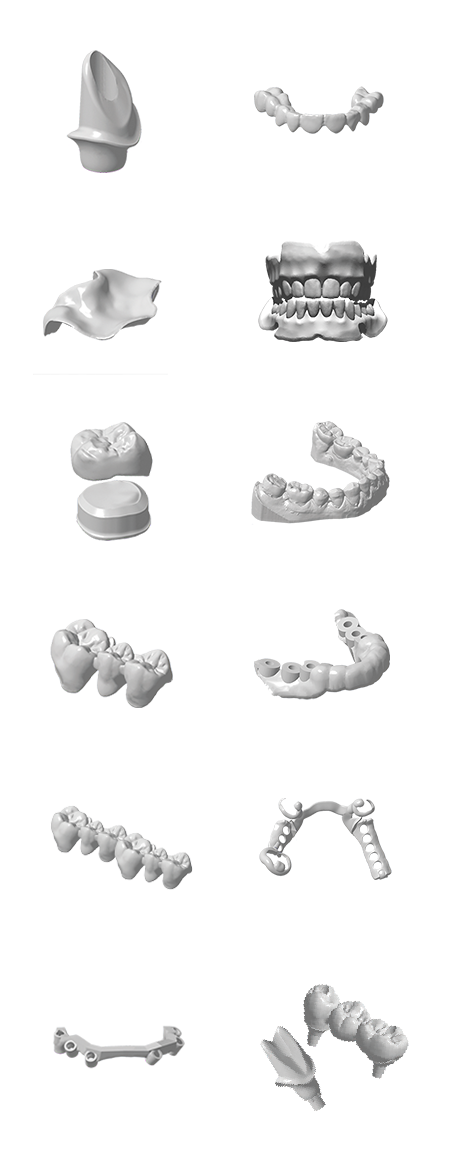

Applications of Camdent SDM5T new appearance
PMMA
WAX
zr-pre sintered
Zr-full dense sintered
PEEK
COMPOSITE
glass ceramics
SINT
Pre-milled CoCr-Abutment
Titanium
Glass Ceramics
Glass Ceramics
Block
Block
Pre-milled
Pre-milled
Standard
Standard
Crown, bridge
Crown, bridge
Inlay, Onlay, Veneer
Inlay, Onlay, Veneer
Bridge larger 3 units
Bridge larger 3 units
Splint
Splint
Full Denture
Full Denture
Model
Model
Drilling template
Drilling template
Model casting
Model casting
Bridge
Bridge
Telescopic technology
Telescopic technology
Abutment
Abutment
Hybrid Abutment
Hybrid Abutment
Camdent SDM5T new appearance-MOVIE
Technical Perameters
CNC controller
5 axis dental system with touch screen
Milling mode
Dry/Wet
Millable material
Zirconia,Titanium, Premill, CoCr, Lithium Disilicate,
Product type
coping/crown, inlay/onlay, abutment/implant bridge,
Millable material
Peek, Pmma,Wax,
Product type
veneer, premilled abutment, customized abutment,
Spindle power
3KW
Product type
partial framework, surgical guide, model, full denture
Speed of spindel
3000-60000rpm/min
Spindle cooling
Water-cooled
X/Y/Z axis motor
servo motor
A/B axis motor
100W with High precision slope gear reducer
Rotation range A axis
±360°
Rotation range B axis
±30°
Number of burs(Tools) housed
30 pcs
Attachable bur(tool) shank diameter
6mm
Attachable bur(tool) Length
50mm
Tool change and check
Fully automatic
Compatible compressed air
0.6MPa
Loadable workpiece shape External Diameter
98mm-98.5mm
Loadable workpiece shape Max Height
30mm
Loadable workpiece shape Min. Height
10mm
External dimensions Length
800mm
External dimensions Weight(Depth)
1000mm
External dimensions Height
1400mm
Packing dimension
1150*900*1850mm
Weight
435kg
G.weight
554kg
Input Voltage
Single-phase 220V 50Hz/60Hz
Control command set
NC code
Positioning accuracy
±0.005mm
