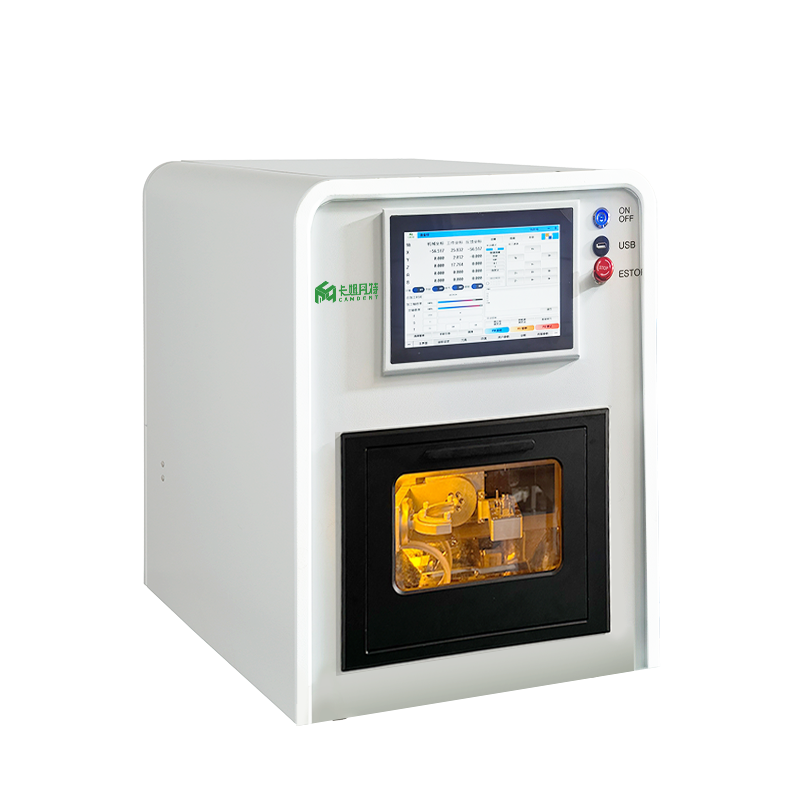

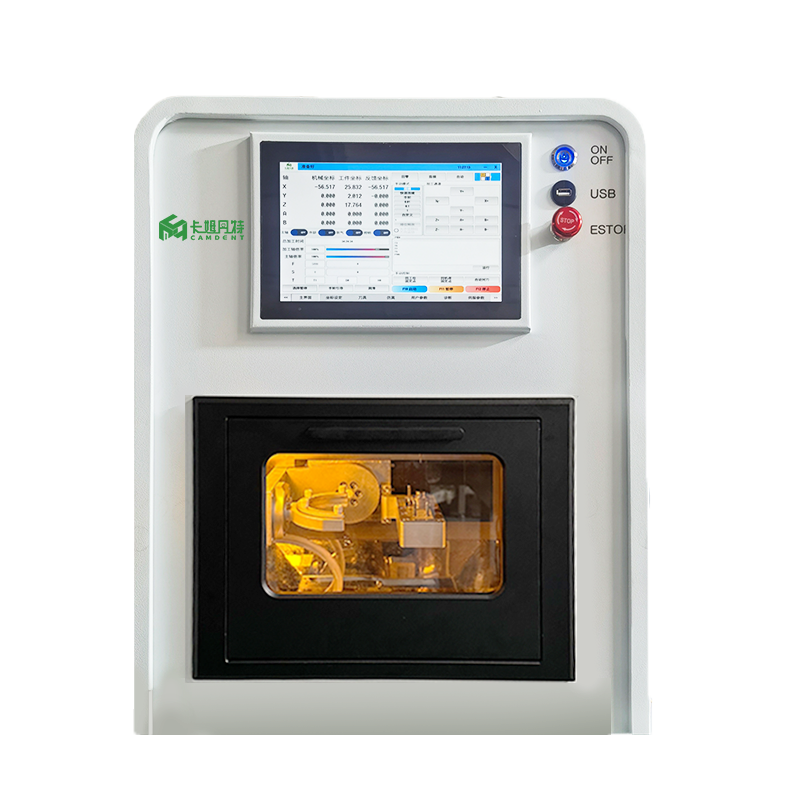

Camdent 6Z
6Z 5-Axis zirconia dental milling machine
Highlights of the Camdent 6Z
MONO BLOCK CAST BODY
novel closed mono-block cast body for stability and precision
AIR COOLED
SELF-SUFFICIENT OPERATION
Air pressure range 0.55-0.6Mpa( No oil and No water )
SCANNER COMPATIBLE
with all open scanners (STL)
HIGH-PERFORMANCE SPINDLE
high end spindle for milling and grinding up to 60.000 rpm
ADAPTER VARIETY
Adapter for all common blocks
Camdent 6Z

Overview:

6Z is a 5-Axis dry-milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibility. It is an ideal choice for high-precision restorations including bridges, frames, splint, abutment,base and complicated operations like zirconia perforation. Equipped with premium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, CDM5Z  offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.

Highlights - Camdent 6Z

Key features:

1. Compact structure

compact size 620mm*500mm*650mm

2. Box structure

High rigidity,not easy to deformation

3. Comprehensive alarms of the protections

Low pressure of the air cooling: low pressure of the changing,unsuccessful returning the knife,breaking the bur when cuts,wrong type of the burs.

4. Open controller system

This system supports international ISO standard G code, compatible with popular CAM software, such as HyperDent,Sun3d millbox,GO2dental,WorkNC dental, Delcam Dental etc.

5. Intelligent processing


Camdent 6Z
Camdent 6Z
CAD SOFTWARE

exocad

Chairsidecad

Scanner

CS360Pro 3D Scanner

PANADA

Carestream CS3600

Medit i500

Shining 3D

Acralscan

other scanners

CAM SOFTWARE

HyperDENT

GO2Dental

MillBox

workNC

Materials

Wax

PMMA / PEEK

Zirconia


TOOLS

Milling and

grinding tools

CAMDENT 6Z
Applications of Camdent 6Z
Technical Perameters
Average milling time (dental crown) PMMA
8-10 min
Average milling time (dental crown) Wax
3-6 min
Average milling time (dental crown) Zirconia
8-15 min
Positioning accuracy
±0.02mm
Control command set
NC code
Input Voltage
Single-phase 220V 50Hz/60Hz
G.weight
121kg
Weight
95kg
Packing dimension
600*660*790mm
External dimensions Height
650mm
External dimensions Weight(Depth)
620mm
External dimensions Length
500mm
Loadable workpiece shape Min Height
10mm
Loadable workpiece shape Max Height
30mm
Loadable workpiece shape External Diameter
98mm
Compatible compressed air
0.6MPa
Tool change and check
Fully automatic
Attachable bur(tool) Length
45mm
Attachable bur(tool) shank diameter
4mm
Attachable bur(tool) shank diameter
4mm
Number of burs(Tools) housed
6pcs
Rotation range B axis
-110°~+35°
Rotation range A axis
±360°
Spindle power
100W
A/B axis motor
100W with High precision slope gear reducer
Spindle cooling
Air-cooled
X/Y/Z axis motor
AC servo motor
Speed of spindle
3000-60000rpm/min
Spindle power
100W
Product type
Crown/coping, Bridge, Inlay/onlay
Milling mode
Dry
Millable material
Zirconia,Wax,PMMA
CNC controller
 5 axis dental system with touch screen
Model
6Z
Name
5 Axis dental CAD/CAM milling machine
