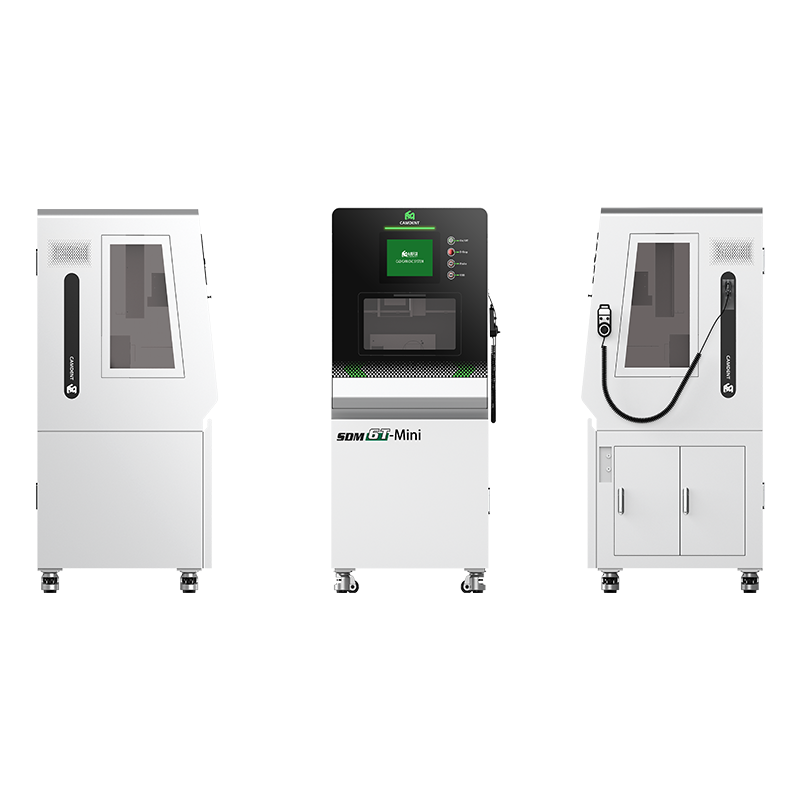

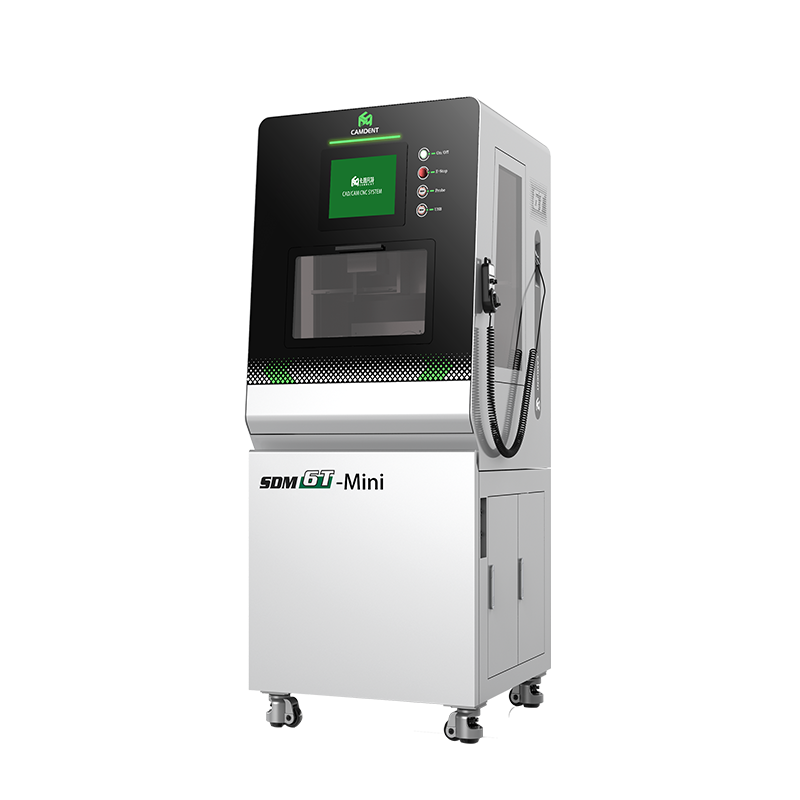

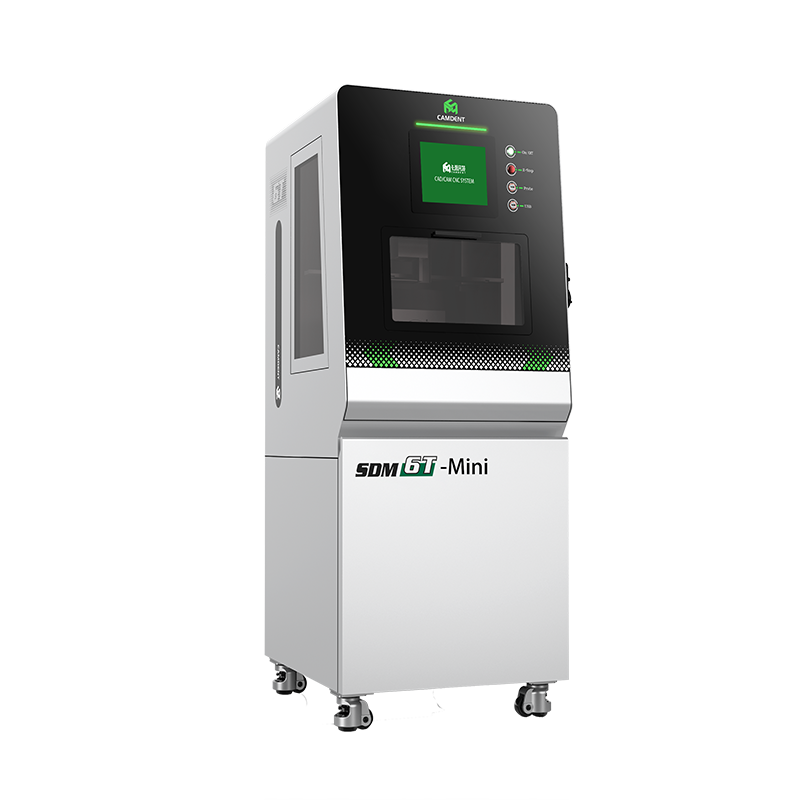

Camdent SDM6T-Mini
SDM6T-Mini 5 Axis metal dental miling machine
Highlights of the Camdent SDM6T-Mini
Camdent SDM6T-Mini

The CAD/CAM digital lab solution


SDM6T-Mini is a 5-Axis Metal-miling machine for dental CAD/CAM systemwith widerange of materials, featuring high accuracy, durable stability and excellent com.patibility. lt is anideal choice for high-precision restorations including bridges, framessplint, abutmentbridge,implant bar, base and complicated operations like zirconia perfora.tion. Equipped withpremium spindle, imported core parts, smart CAM nesting system andinteligent touch screen.SDM6T-Mini offers better  disc handling, wider material capabilities.automatic tool change to deliver ahigher efficiency.

Highlights - Camdent SDM6T-Mini

Key features:

1.open controller system

This system supports international lSO standard G code, compatiblewithpopular CAM software, such as HyperDent, WorkNC。

2.Intelligent processing

Excellent and simple man-machine interface, touch screen control,simpleoperation, unique CAD/CAM processing strategy, no need forprofessionaCNC programmers, one-button operation, stable operation.

3.High Accuracy

The body structure adopts the industrial standard cast iron andcastaluminum structure, high rigidity, no deformation, stable precision,longservice life.The mechanical transmission part adopts Taiwan/GermanC3grade high precision ball screw and P grade linear guide rail.

4.High Efficiency

It adopts high power frequency conversion and high speed toolchangingspindle with large torque, high precision, and it can processvariousmaterials with high efficiency.

5.OEM customize

This machine is completely developed and designed by us, so wecanprovide customers with OEM service

Camdent SDM6T-Mini
Camdent SDM6T-Mini
Scanner

CS360Pro 3D Scanner

PANADA

Carestream CS3600

Medit i500

Shining 3D

Acralscan

other scanners


CAD SOFTWARE

exocad

Chairsidecad

CAM SOFTWARE

HyperDENT

MillBox

WorkNC


Materials

Titanium

Titanium Premill

Co-Cr

Zirconia

Glass cermics/Lithium Disilicate

PMMA / PEEK

Wax





TOOLS

Milling and

grinding tools

Camdent SDM6T-Mini
Applications of Camdent SDM6T-Mini
PMMA
WAX
zr-pre sintered
Zr-full dense sintered
PEEK
COMPOSITE
glass ceramic
SINT
Pre-milled CoCr-Abutment
Titanium
Pre-milled Abutment
Pre-milled Abutment
Titanium disc
Titanium disc
Glass Ceramics
Glass Ceramics
Titanium premill-Medentika
Titanium premill-Medentika
Crown, bridge
Crown, bridge
Inlay, Onlay, Veneer
Inlay, Onlay, Veneer
Coping Bridge
Coping Bridge
Splint
Splint
Full Denture
Full Denture
Full Denture
Full Denture
Wax RPD Framework
Wax RPD Framework
Bridge
Bridge
Coping 、Crown
Coping 、Crown
Abutment
Abutment
Hybrid Abutment
Hybrid Abutment
Camdent SDM6T-Mini-MOVIE
Technical Perameters
Name
5 Axis dental CAD/CAM milling machine
Model
SDM6T-Mini
CNC controller
 5 axis dental system with touch screen
Milling mode
Wet/Dry
Millable material
Zirconia,Titanium, CoCr, Premill, Lithium Disilicate, Peek, Pmma, Wax
Product type
coping/crown, inlay/onlay, abutment/implant bridge, veneer, premilled abutment, customized abutment, partial framework, surgical guide, model, full denture
Equipment size
1150mm*1050mm*1970mm
Axis number
5 axis
Processing method
Wet/Dry
Max operateing speed
60000rpm/min
X axis route
270mm
Y axis route
145mm
Z axis route
140mm
Power
Single AC220V 4.0KW
Packing dimension
1100*950*1900MM
External dimensions Height
1680mm
External dimensions Weight(Depth)
950mm
External dimensions Length
760mm
Loadable workpiece shape Min Height
10mm
Loadable workpiece shape Max Height
30mm
Loadable workpiece shape External Diameter
98mm
Compatible compressed air
0.6MPa
Tool change and check
Fully automatic
Attachable bur(tool) Length
50mm
Attachable bur(tool) shank diameter
6mm
Number of burs(Tools) housed
28pcs
Rotation range B axis
±35°
Rotation range A axis
±360°
Spindle power
3KW
Spindle cooling
Water-cooled
Speed of spindle
60000rpm/min
