Camdent CDM5Z

Highlights of the Camdent CDM5Z

MONO BLOCK CAST BODY

novel closed mono-block cast body for stability and precision

AIR COOLED

SELF-SUFFICIENT OPERATION

Air pressure range 0.55-0.6Mpa（ No oil and No water )

SCANNER COMPATIBLE

with all open scanners (STL)

HIGH-PERFORMANCE SPINDLE

high end spindle for milling and grinding up to 60.000 rpm

ADAPTER VARIETY

Adapter for all common blocks

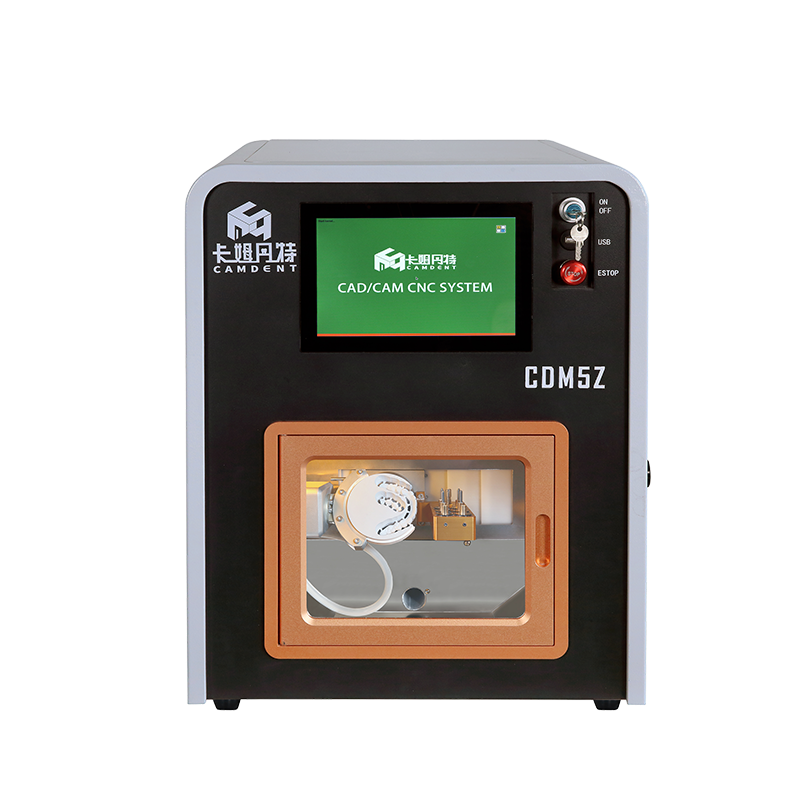

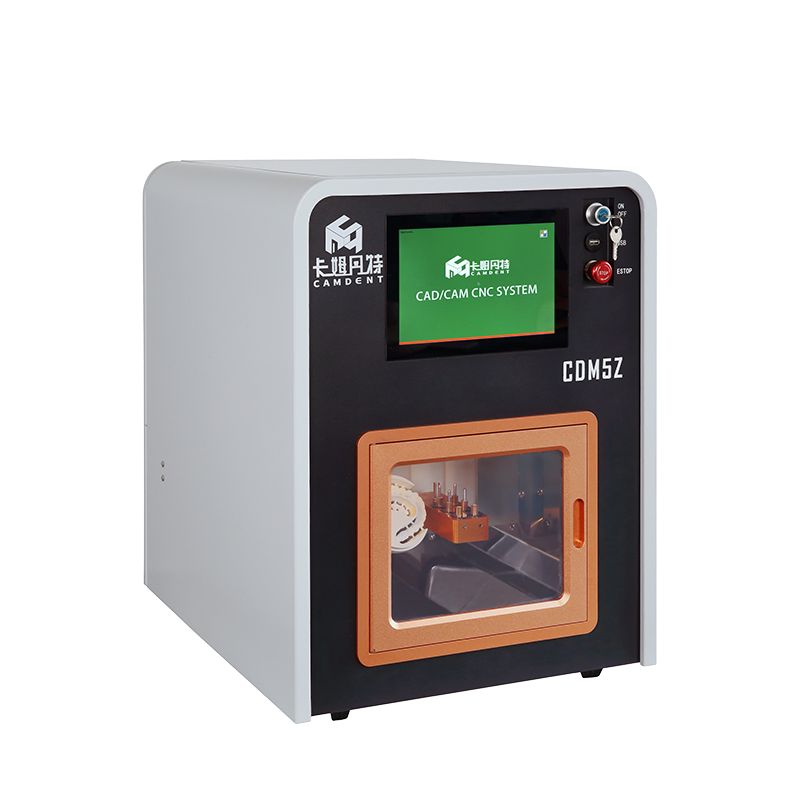

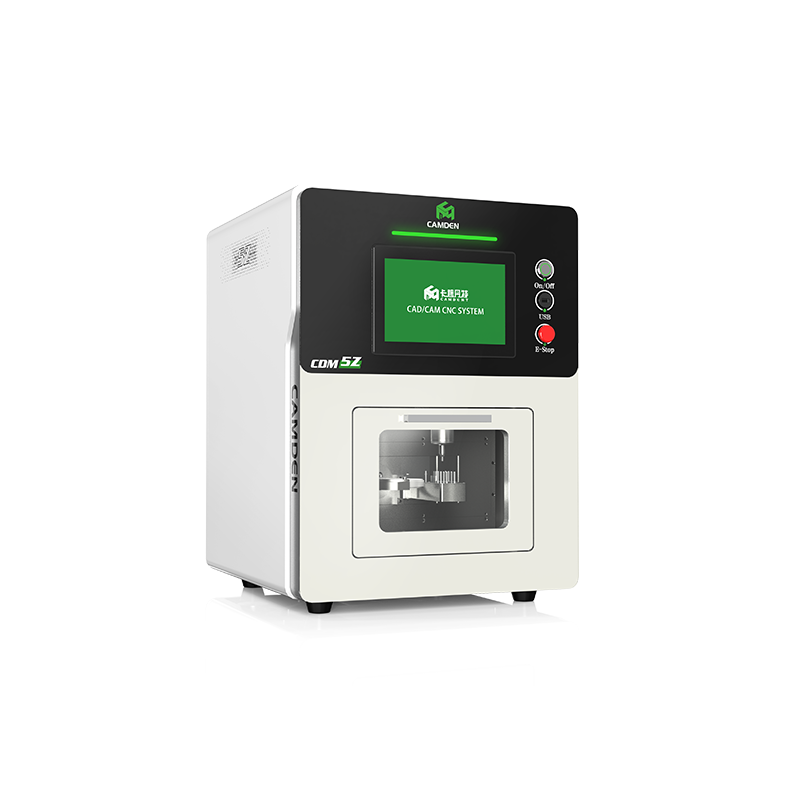

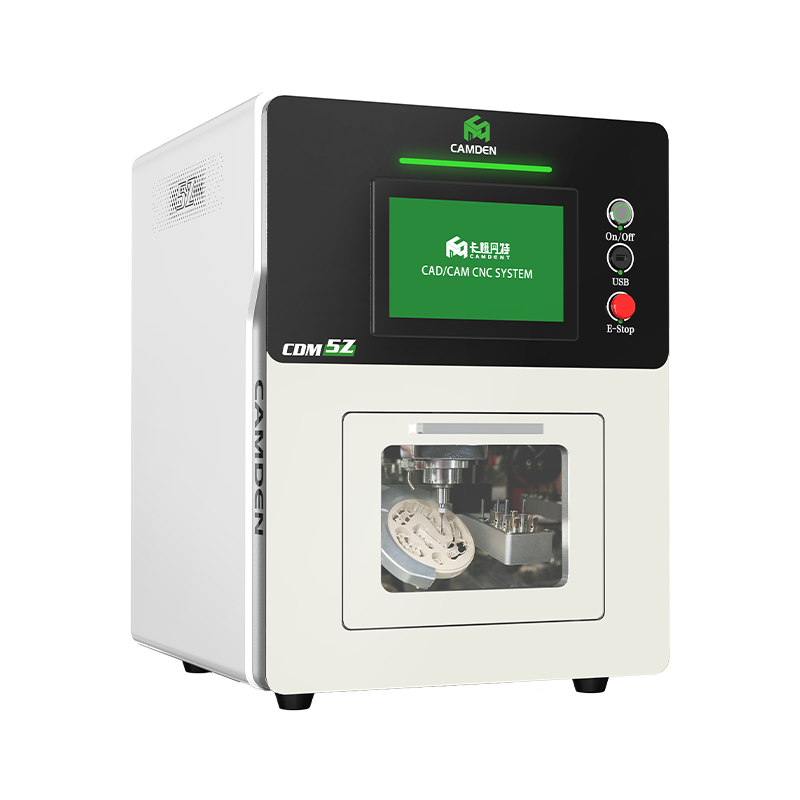

Camdent CDM5Z

CDM5Z is a 5-Axis dry-milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibility. It is an ideal choice for high-precision restorations including bridges, frames, splint, abutment,base and complicated operations like zirconia perforation. Equipped with premium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, CDM5Z offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.

Highlights - Camdent CDM5Z

Key features:

1. Compact structure

compact size 500mm*650mm*620mm

Length × Width (Depth) × Height

2. Box structure

High rigidity,not easy to deformation

3. Comprehensive alarms of the protections

Low pressure of the air cooling: low pressure of the changing,unsuccessful returning the knife,breaking the bur when cuts,wrong type of the burs.

4. Open controller system

This system supports international ISO standard G code, compatible with popular CAM software, such as HyperDent，Sun3d millbox,GO2dental,WorkNC dental, Delcam Dental etc.

5. Intelligent processing

Camdent CDM5Z

Scanner

CS360Pro 3D Scanner

PANADA

Carestream CS3600

Medit i500

Shining 3D

Acralscan

other scanners

CAD SOFTWARE

exocad

Chairsidecad

CAM SOFTWARE

HyperDENT

GO2Dental

MillBox

workNC

Materials

Wax

PMMA / PEEK

Zirconia

TOOLS

Milling and

grinding tools

CAMDENT CDM5Z

Applications of Camdent CDM5Z

PMMA

WAX

zr-pre sintered

Zr-full dense sintered

PEEK

COMPOSITE

glass ceramics

SINT

Pre-milled CoCr-Abutment

Pre-milled Ti-Abutment

Standard

Dentures

E-Max

Block

Crown, bridge

Inlay, Onlay, Veneer

Bridge larger 3 units

Splint

Full Denture

Model

Drilling template

Model casting

Bridge

Telescopic technology

Abutment

Hybrid Abutment

Technical Perameters

Name

5 Axis dental CAD/CAM milling machine

Model

CDM5Z

CNC controller

5 axis dental system with touch screen

Milling mode

Dry

Millable material

Zirconia，PEEK，Wax，PMMA

Product type

Crown, Bridge,Implant Bridge.Veneer , Onlay,inlay,Copng,Abutment, Sugcal Gude & Ful Denture.，

Spindle power

500W

Speed of spindle

3000-60000rpm/min

X/Y/Z axis motor

servo motor

Spindle cooling

Air-cooled

A/B axis motor

A:100W B:200W

Rotation range A axis

±360°

Rotation range B axis

-110°~+35°

Number of burs(tool) housed

6pcs

Attachable bur(tool) shank diameter

4mm

Attachable bur(tool) Length

45mm

Tool change and check

Fully automatic

Compatible compressed air

0.6MPa

Loadable workpiece shape External Diameter

98mm-98.5mm

Loadable workpiece shape Max Height

30mm

Loadable workpiece shape Min Height

10mm

External dimensions Length

500mm

External dimensions Width (Depth)

650mm

External dimensions Height

620mm

Packing dimension

780*750*980mm(Lx W(D)xH)

Net Weight

110kg

G.weight

146kg

Input Voltage

Single-phase 220V 50Hz/60Hz

Control command set

NC code

Positioning accuracy

±0.005mm

Average milling time (dental crown) Zirconia

8-15 min

Average milling time (dental crown) Wax

3-6 min

Average milling time (dental crown) PMMA

8-10 min
