| PID automatic control via SCR (Silicon Controlled Rectififier) power control with phase angle fifired, current limiting resistor.
|
Touch screen panel which can store 30pcs difffferent programs
|
Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
|
Over temperature protection and alarm allows for operation without attendant.
|
| |
| |
| |

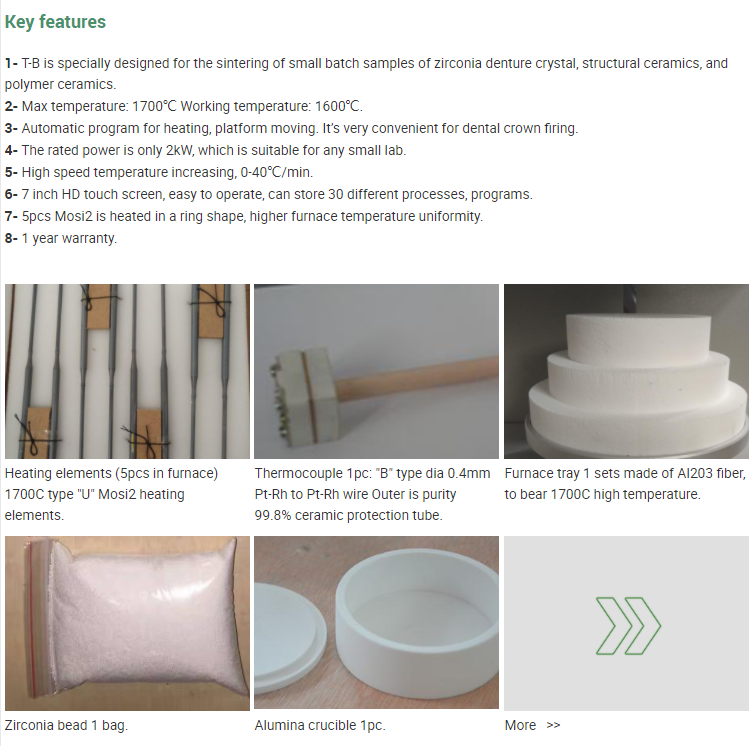

| B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube
|
| U type MoSi2 heating elements
|

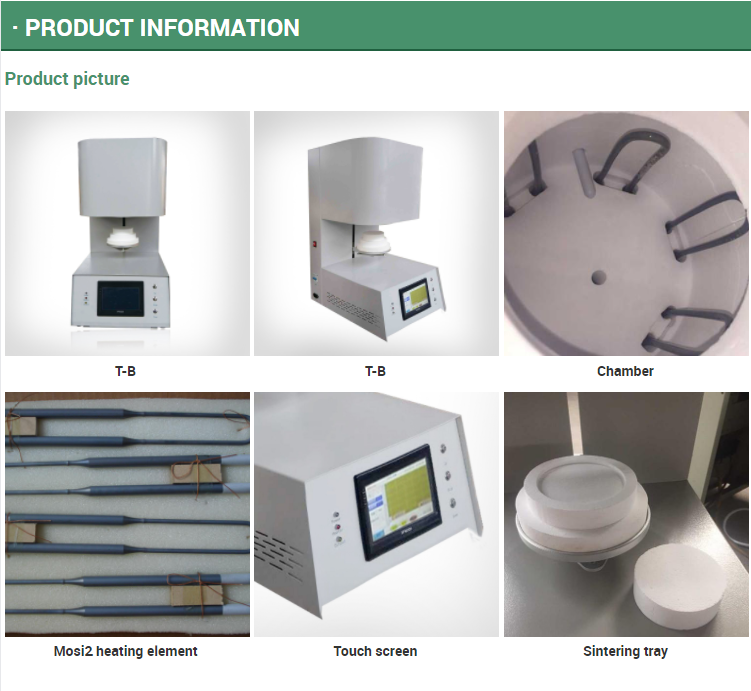

Zirconia Sintering Furnace Chamber
| Zirconia Sintering Furnace Three layers of ceramic fifiber insulation materials
|
First layer: 1800℃ ceramic fifiber board
|
Second layer: 1600℃ ceramic fifiber board
|
Third layer: 1260℃ ceramic fifiber board
|
| Double layer steel casing with dual cooling fan, surface
temperature below 60℃
|

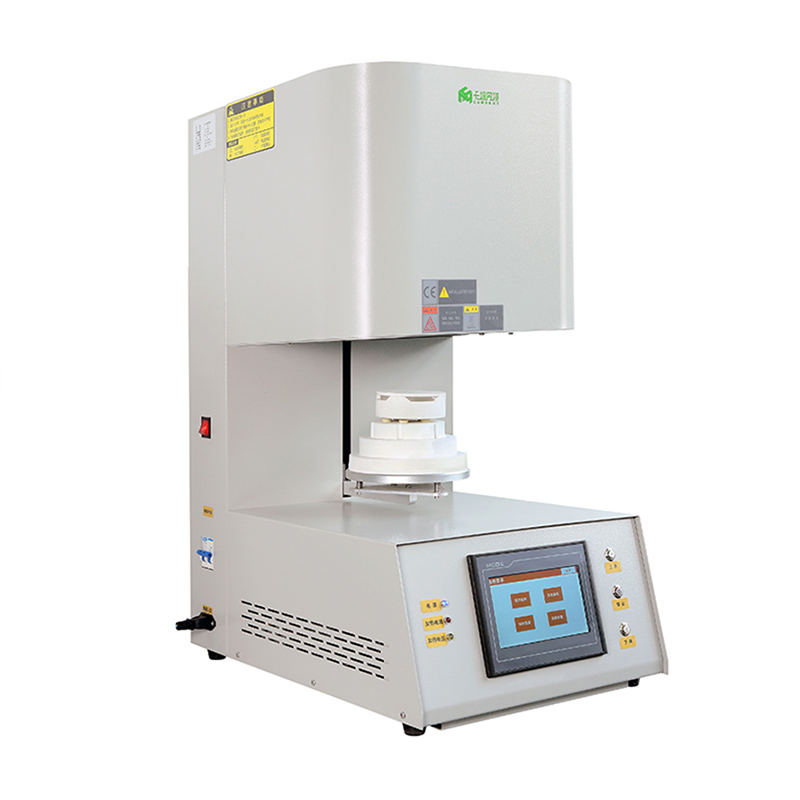

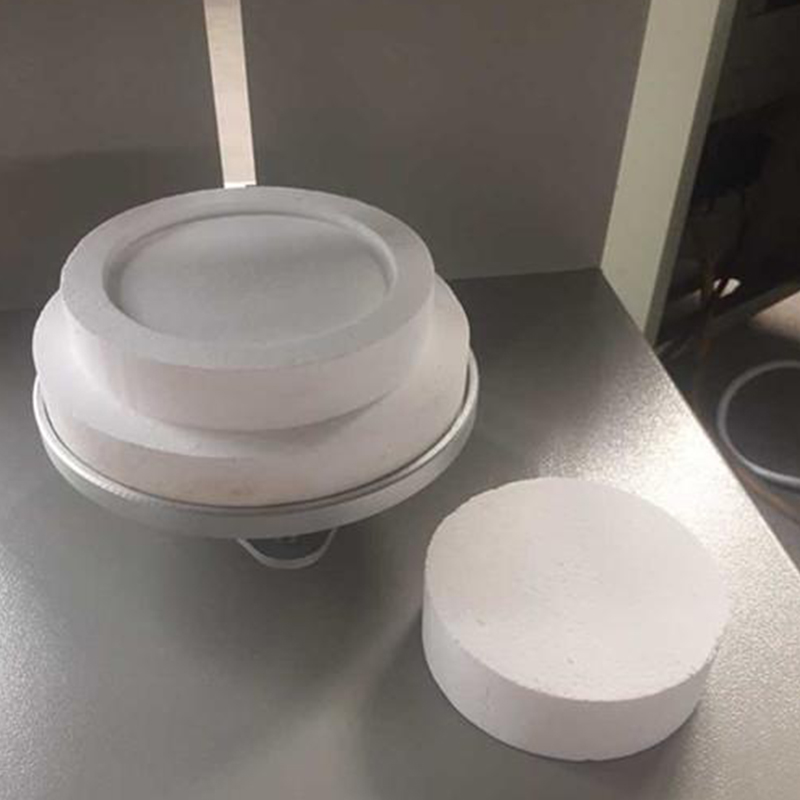

| Elevator opening with platform
|
Power cutting offff when furnace door open |
| |
| 220V, 50HZ/60HZ, 1 phases (As per your order)
|
| |
| Net Weight: about 90kgs Gross Weight: about 110kgs
|
| One year limited warranty with lifetime support (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products)
|
ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty
|
