Camdent CDM5C
5 Axis dry dental miling machine
Highlights of the Camdent CDM5C
SCANNER COMPATIBLE
with all open scanners (STL)
SELF-SUFFICIENT OPERATION
Air pressure range 0.55-0.6Mpa( No oil and No water )
AIR COOLED

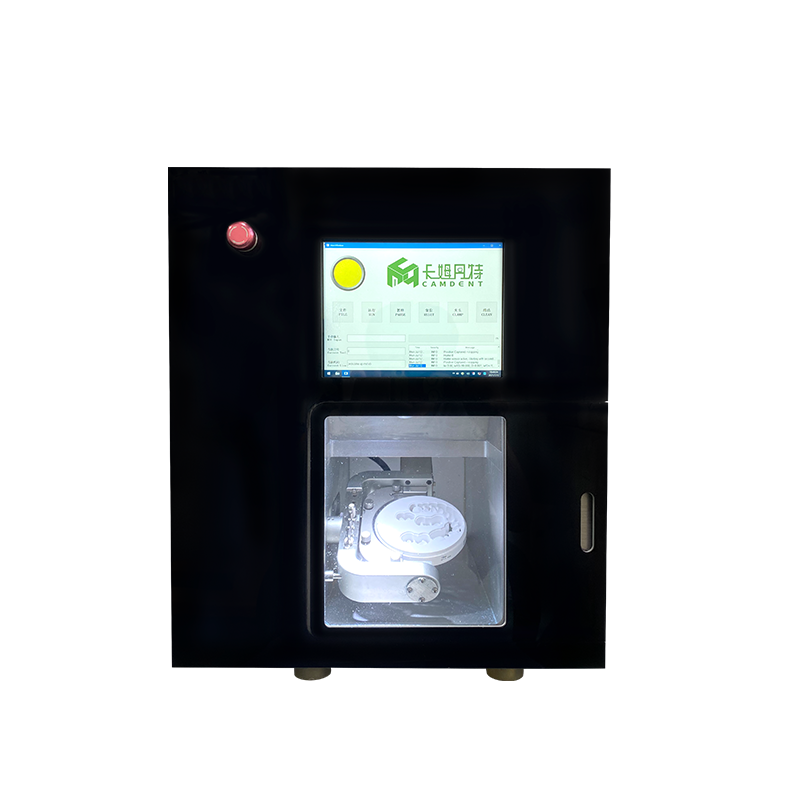

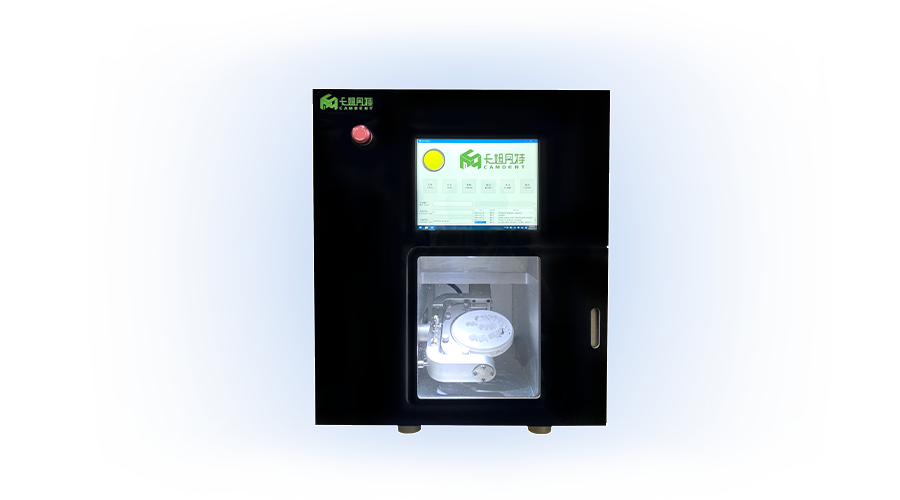

Camdent CDM5C
CDM5C is a 5-Axis dry milling machine for dental CAD/CAM system with zirconia,pmma,wax etc material.
Euipped with premium spindle,import core parts and box structure,make sure our machine high precision,
durable stability.It is an ideal choice for high-precision restoration including bridges,frames,splintabutment,base
 and complicated operations like zirconia perforation.Our CDM5C compact structure size:443*391*475mm,Net
weight: only 60kg,It's one of the smallest and lightest 5 axis CAD/CAM milling machine in market and widely
used in dental lab and chairside.
Highlights - Camdent CDM5C

Key features:

1. Compact structure

Compact size,compact structure,Machine size:443*391*475mm

2. Box structure

High rigidity,not easy to deformation.

3. Comprehensive alarms of the protections

Low pressure of the air cooling:low pressure of the changing burs and can be operated when the pressure is back normal;unsuccessful grasping the bur;unsuccessful returning the burs;burs break;wrong tool number

4. Open controller system

This system supports international ISO standard G code, compatible with popular CAM software, such as HyperDent,Sun3d millbox,GO2dental,WorkNC dental,Delcam Dental etc

5. Intelligent processing

Excellent and simple man-machine interface, touch screen control, simple operation, unique CAD/CAM processing strategy, no need for professional CNC programmers, onebutton operation, stable operation.

6. OEM customize

This machine is completely developed and designed by us, so we can provide customers with OEM service.

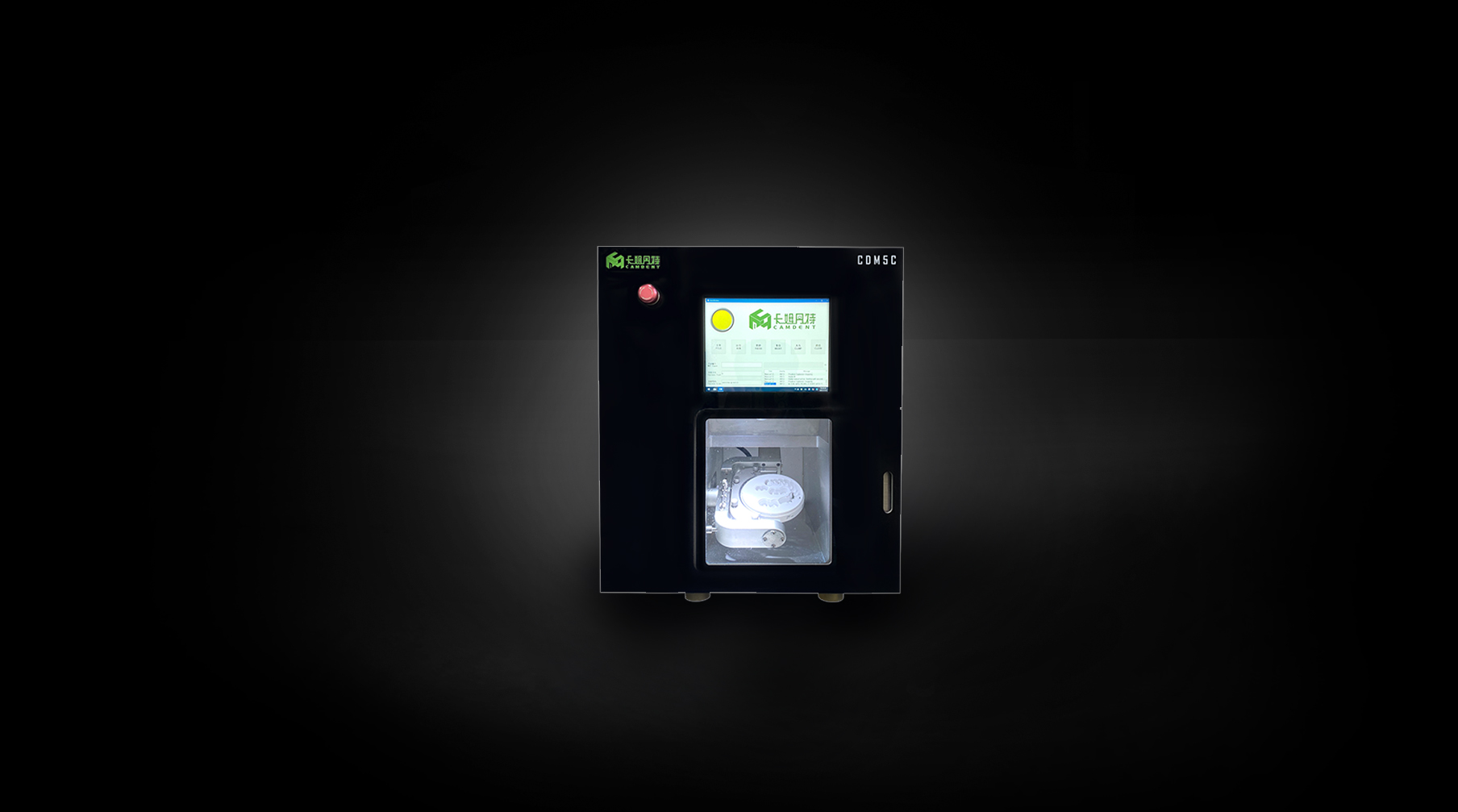

Camdent CDM5C

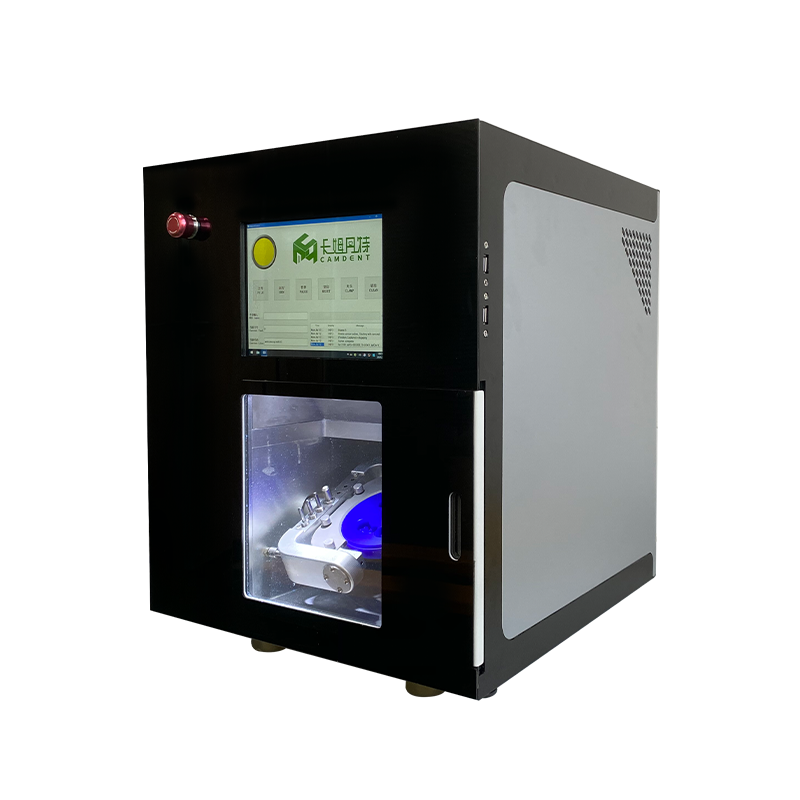

Camdent CDM5C
Scanner
CS360Pro 3D Scanner PANADA Carestream CS3600 Medit i500 Shining 3D Acralscan other scanners
CAD SOFTWARE
exocad Chairsidecad
Materials

Zirconia

PMMA / PEEK

Wax


CAM SOFTWARE
HyperDENT GO2Dental MillBox workNC
TOOLS

Milling and

grinding tools


Applications of Camdent CDM5C
PMMA
WAX
zr-pre sintered
Zr-full dense sintered
PEEK
COMPOSITE
glass ceramics
SINT
Pre-milled CoCr-Abutment
Pre-milled Ti-Abutment
Pre-milled Abutment
Pre-milled Abutment
Block
Block
Dentures
Dentures
Standard
Standard
Crown, bridge
Crown, bridge
Inlay, Onlay, Veneer
Inlay, Onlay, Veneer
Bridge larger 3 units
Bridge larger 3 units
Splint
Splint
Full Denture
Full Denture
Model
Model
Drilling template
Drilling template
Model casting
Model casting
Bridge
Bridge
Telescopic technology
Telescopic technology
Abutment
Abutment
Hybrid Abutment
Hybrid Abutment
Technical Perameters
Model
CDM5C
Volume
470*393*475mm
Motor
Micro Step Servo
number of axis
5 axis simultaneous
Spindle
500w+ATC
Machinable products
Coping、Crown Bridge、Veener、Telescope、Hybrid、WaxRPD、 Surgical Guides、Coping bridge、Crown、Inlay、Onlay、 Model、All oral dental、Orthodontic braces
Spindle Cool
Air Cool
Workpiece Cool
Dust Clean
Tool Library
6
Tool Size
R1*L18mm/R0.5*L16mm/R0.3*L10mm
功率
1.0kw
Net Weight
75kg
Positioning Accuracy
0.005mm
Repeat Positioning Accuracy
0.008mm
Maximum Speed
3600mm/min
A-axis Rotation Angle
(-25)-(25)
B-axis Rotation Angle
0-(360)
Machinable Material Size
ø98*10-25mm/CERCON ø105*10-25mm
Machinable material
Zirconia/Wax/PMMA
