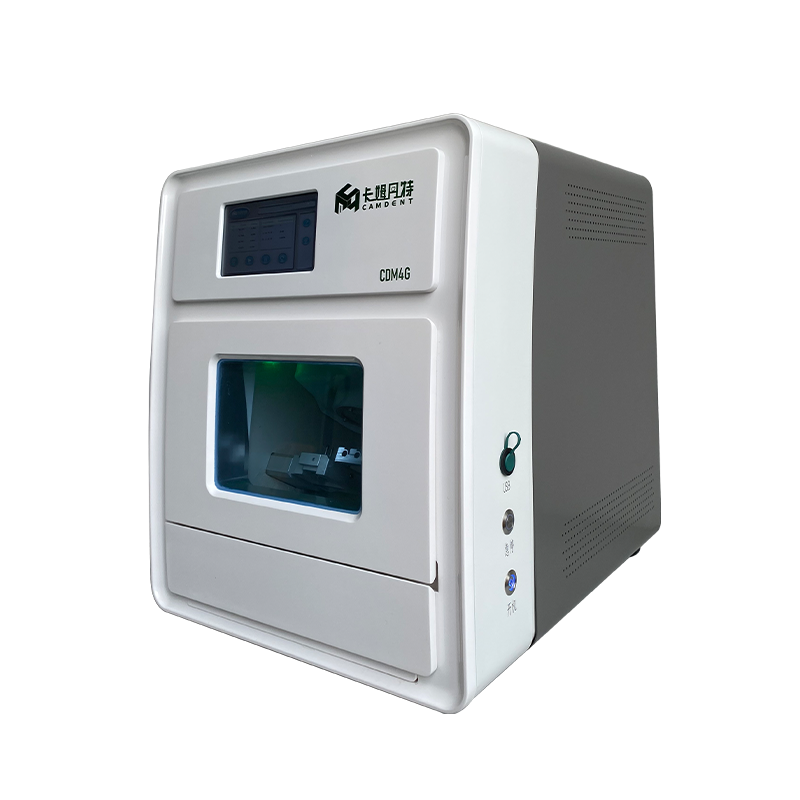

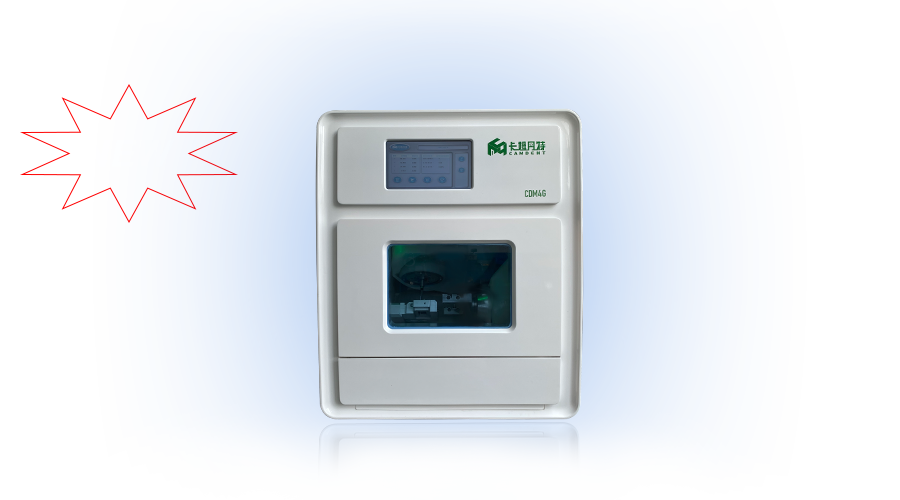

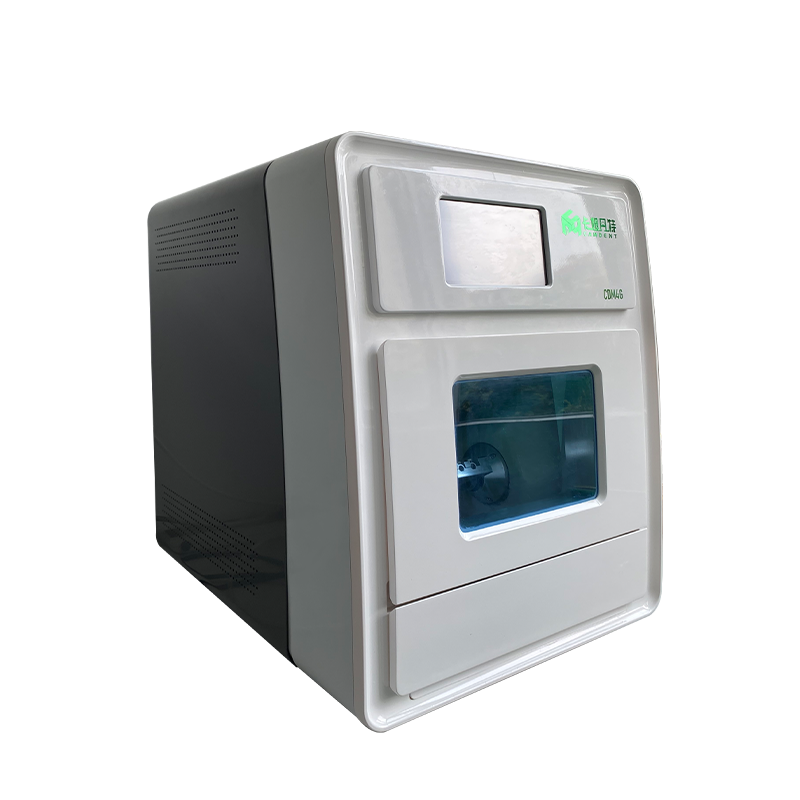

Camdent CDM4G
4 Axis wet dental miling machine
Highlights of the Camdent CDM4G
wet
SCANNER COMPATIBLE
with all open scanners (STL)
MONO BLOCK CAST BODY
novel closed mono-block cast body for stability and precision
Camdent CDM4G

Technical highlights:

a.German industrial design scheme,import core parts,excellent industrial genes.

b.Natural marble base, one-piece solid aviation aluminum casting frame, good anti-vibration effect.

c.Intelligent digital full closed loop control system with high reliability and good stability.

d.Zero-clearance revolving structure, high precision.

e.Adjustable nozzle structure, tool cooling is more sufficient.

f.Broken tool detection and tool life management to reduce processing defects.

g.It is convenient to switch between titanium fixture and glass ceramic fixture.

h.Cloud platform and remote transmission software make it more convenient to use and maintain.

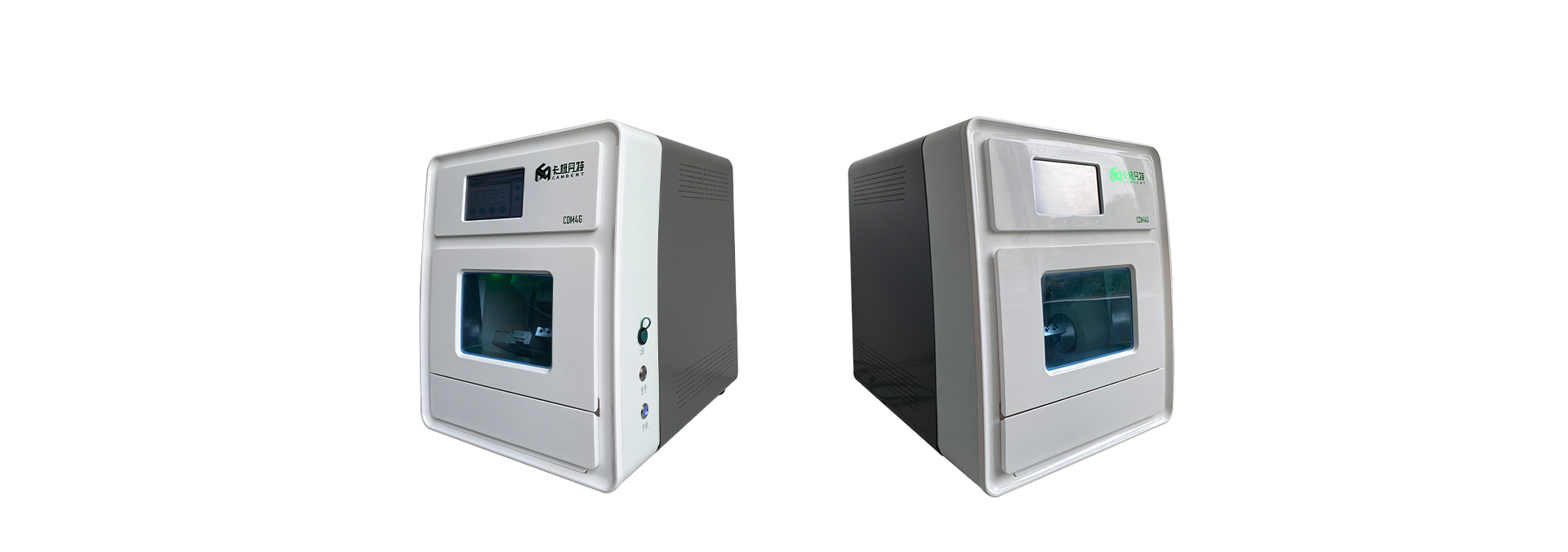

Highlights - Camdent CDM4G
Camdent CDM4G
Camdent CDM4G
Scanner
CS360Pro 3D Scanner PANADA Carestream CS3600 Medit i500 Shining 3D Acralscan other scanners
CAD SOFTWARE
exocad Chairsidecad

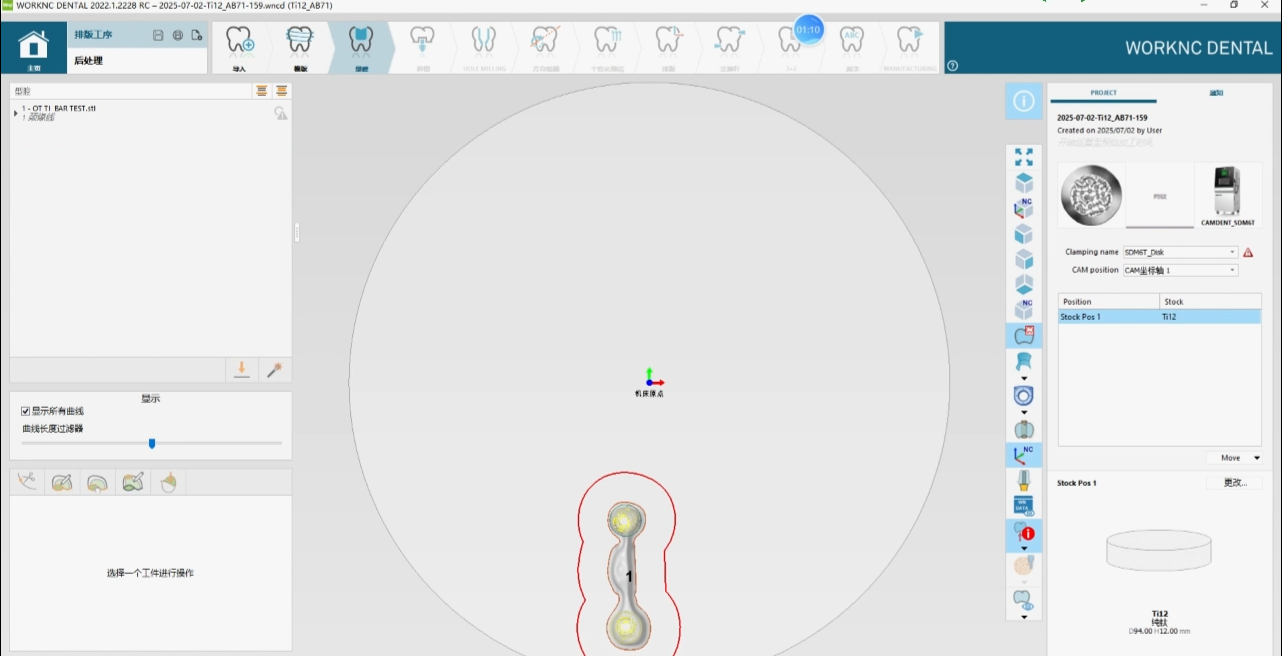

CAM SOFTWARE
HyperDENT GO2Dental MillBox workNC
Materials

Premilled Ti-abutment

Glass ceramic

TOOLS

Milling and

grinding tools

Applications of Camdent CDM4G
PMMA
WAX
zr-pre sintered
Zr-full dense sintered
PEEK
COMPOSITE
glass ceramics
SINT
Pre-milled CoCr-Abutment
Pre-milled Ti-Abutment
Pre-milled Abutment
Pre-milled Abutment
Block
Block
Dentures
Dentures
Standard
Standard
Crown, bridge
Crown, bridge
Inlay, Onlay, Veneer
Inlay, Onlay, Veneer
Bridge larger 3 units
Bridge larger 3 units
Splint
Splint
Full Denture
Full Denture
Model
Model
Drilling template
Drilling template
Model casting
Model casting
Bridge
Bridge
Telescopic technology
Telescopic technology
Abutment
Abutment
Hybrid Abutment
Hybrid Abutment
Technical Perameters
Equipment size
470mm*620mm*580mm
Axis number
4 axis
Processing method
Wet milling
Max operateing speed
2500mm/min
X axis route
100mm
Y axis route
100mm
Z axis route
55mm
A axis route
±360 degree
Power
Single AC220V 1.0KW
Weight
80KG
Air pressure
0.6Mpa
Pipe joint
Ф8mm
Airflow
95L/min
Spindle power
0.5kw
Max revolution speed
60000rpm/min
Milling material
Glass ceramic、Titanium、PMMA
Shank diameter
Ф4mm
Tool number
8
Spindle cool
Air cool
Tank volume
3L
Process Abutment
18min
Process Glass-ceramic
20min
