| PID automatic control via SCR (Silicon Controlled Rectififier) power control with phase angle fifired, current limiting resistor. |
Touch screen panel which can store 30pcs difffferent programs |
Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. |
Over temperature protection and alarm allows for operation without attendant. |
| |
| |
| |
| B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube |

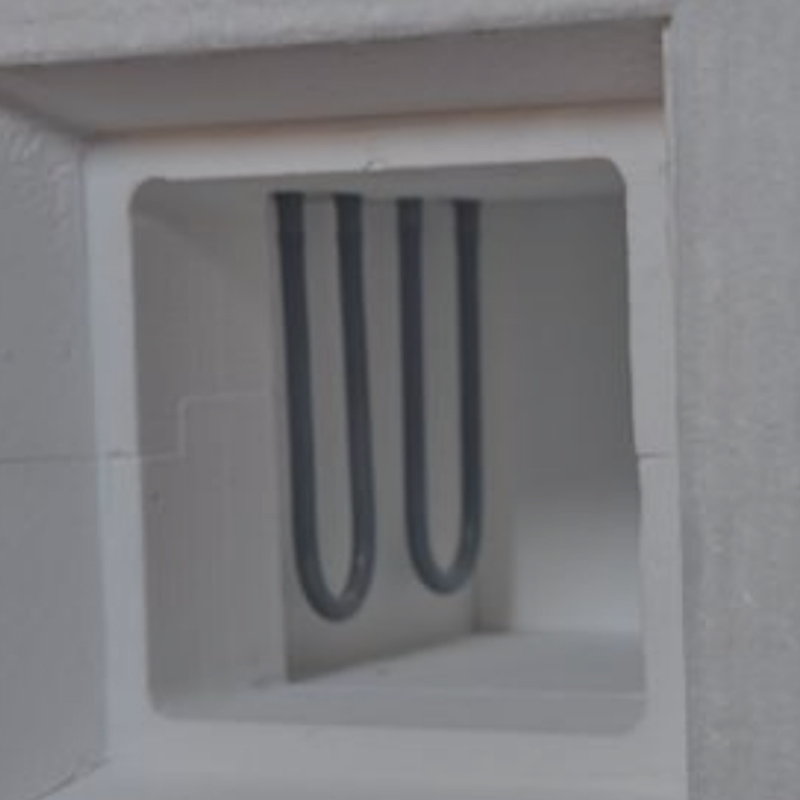

| U type MoSi2 heating elements |
Zirconia Sintering Furnace Chamber | Three layers of ceramic fifiber insulation materials |
First layer: 1800℃ ceramic fifiber board |
Second layer: 1600℃ ceramic fifiber board |
Third layer: 1260℃ ceramic fifiber board |
| Double layer steel casing with dual cooling fan, surface
|
| Elevator opening with platform |
Power cutting offff when furnace door open |
| |
| 220V, 50HZ/60HZ, 1 phases (As per your order) |
| |
| Net Weight: about 58kgs
Gross Weight: about 78kgs |
| For this Dental Zirconia Sintering Furnace, One year limited warranty with lifetime support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products) |
ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty
|
